Accumulation Tables

AUTOMATIC MODULAR SOLUTION

ZEFRON TABLE RT - LT

Rotary & Linear System

√ ZEFRONTABLE RT – LT: table designed to operate as feeding or accumulation point, both at line infeed and outfeed, ensuring continuous and regular product flow.

√ Frame in satin-finished AISI 304 stainless steel, ensuring mechanical strength, hygiene in sensitive production environments, and long-term durability.

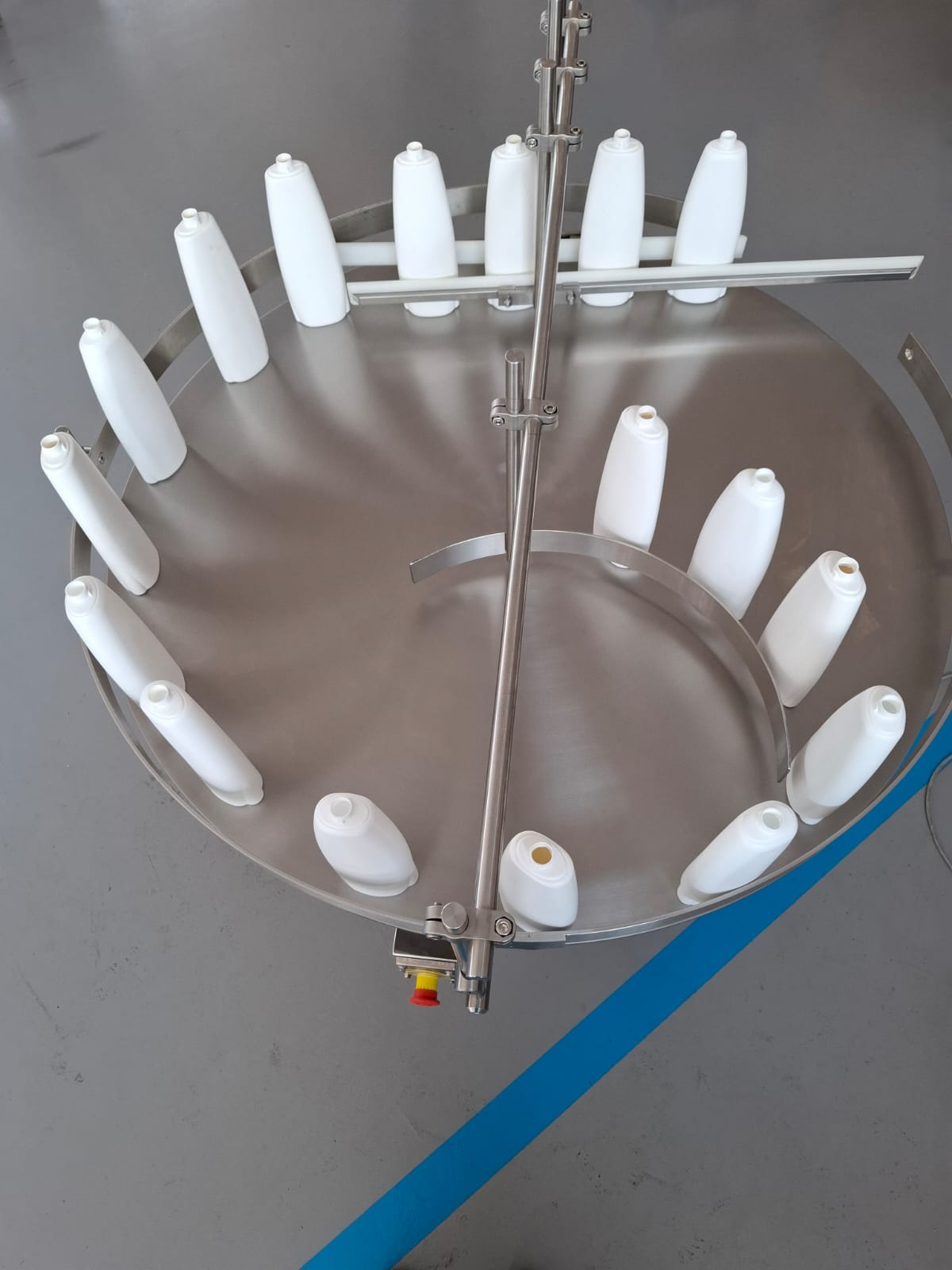

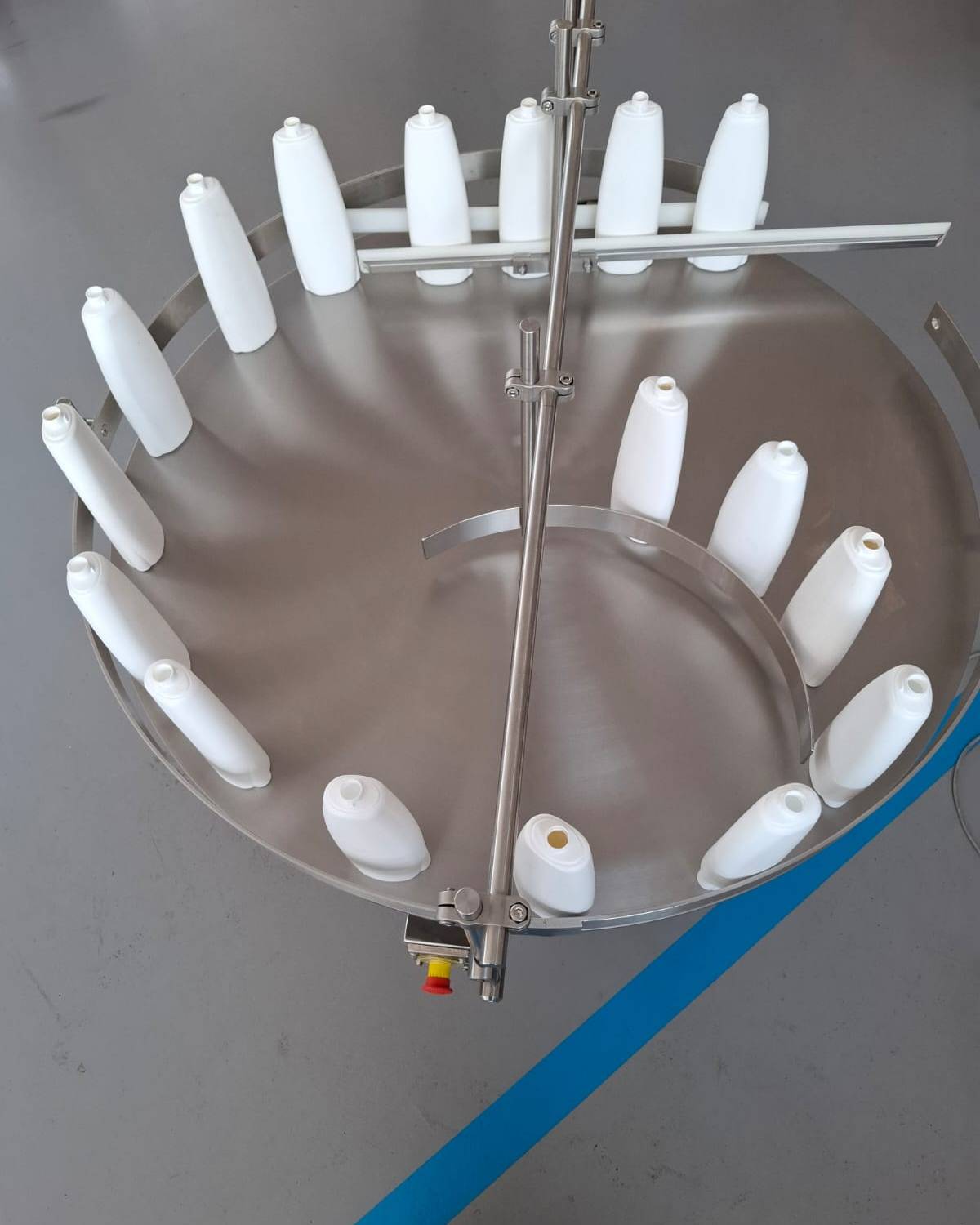

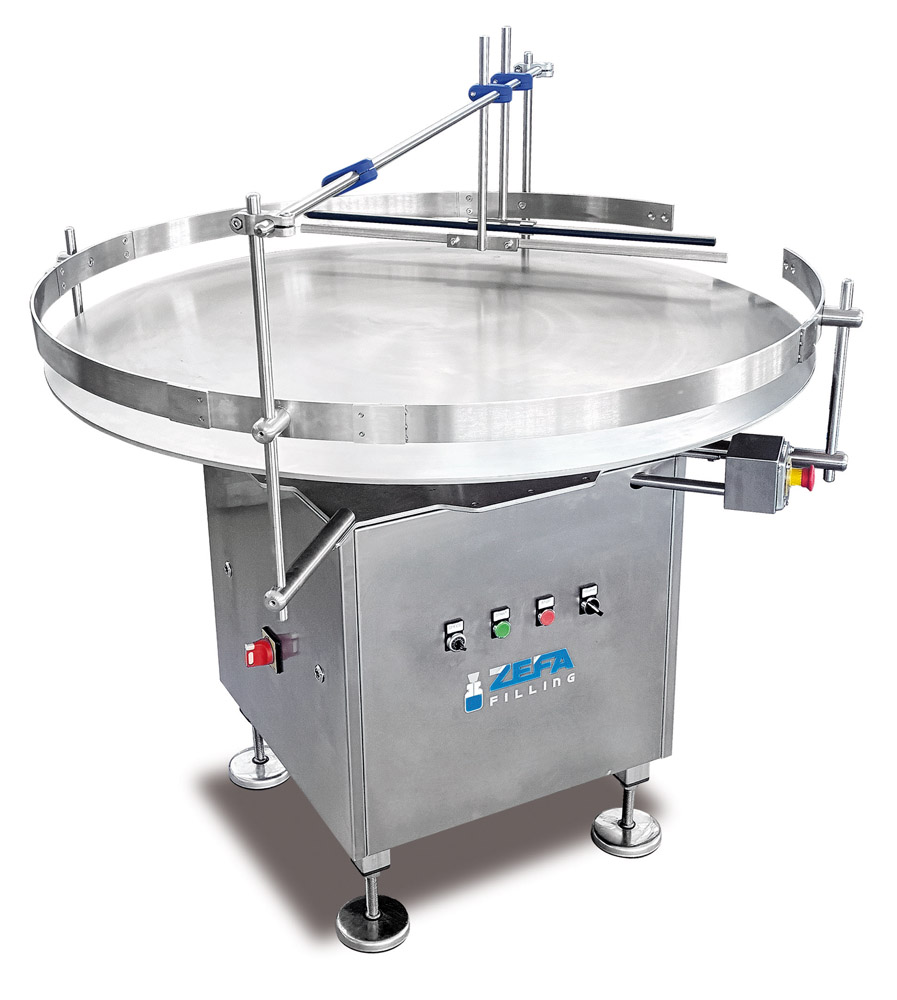

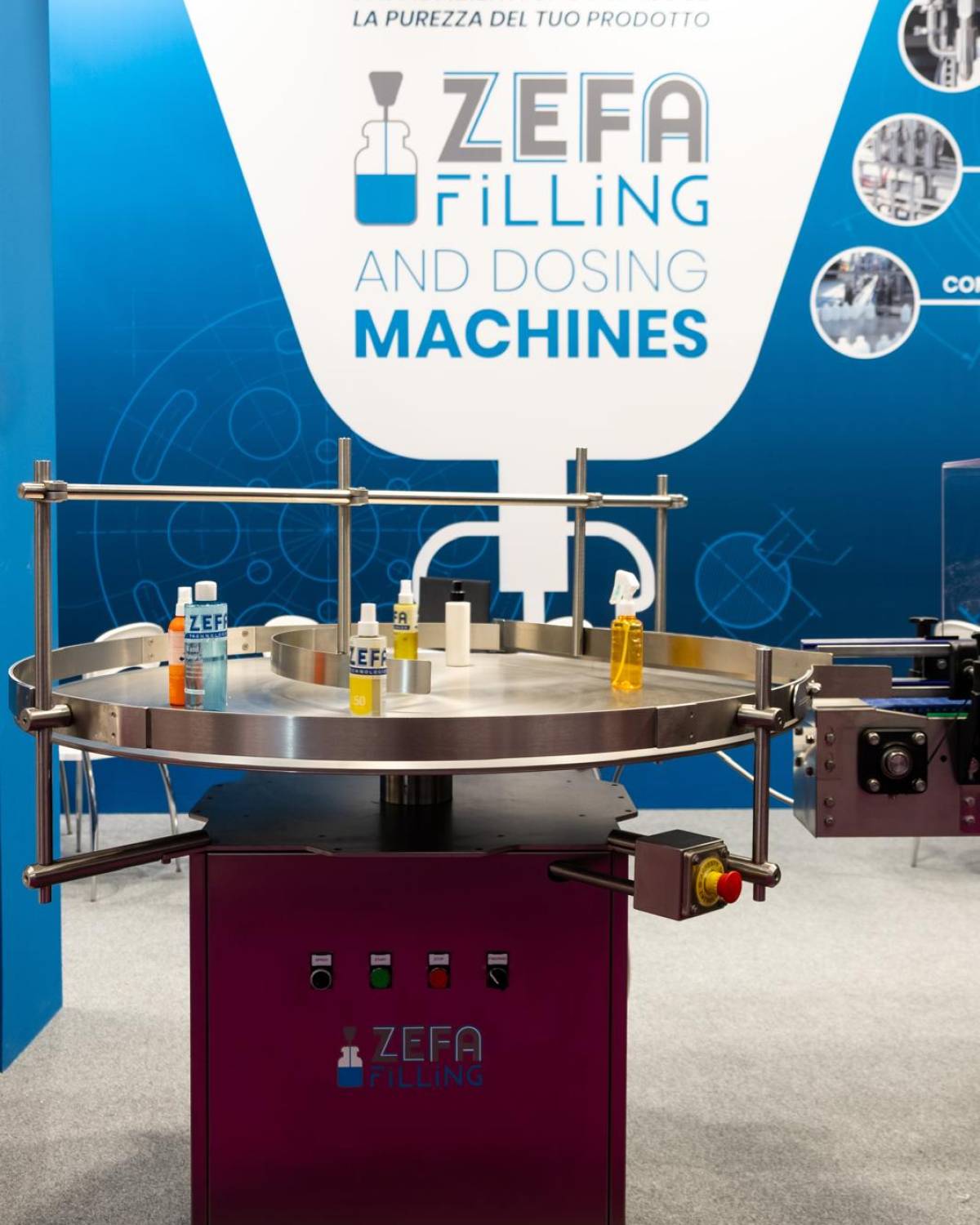

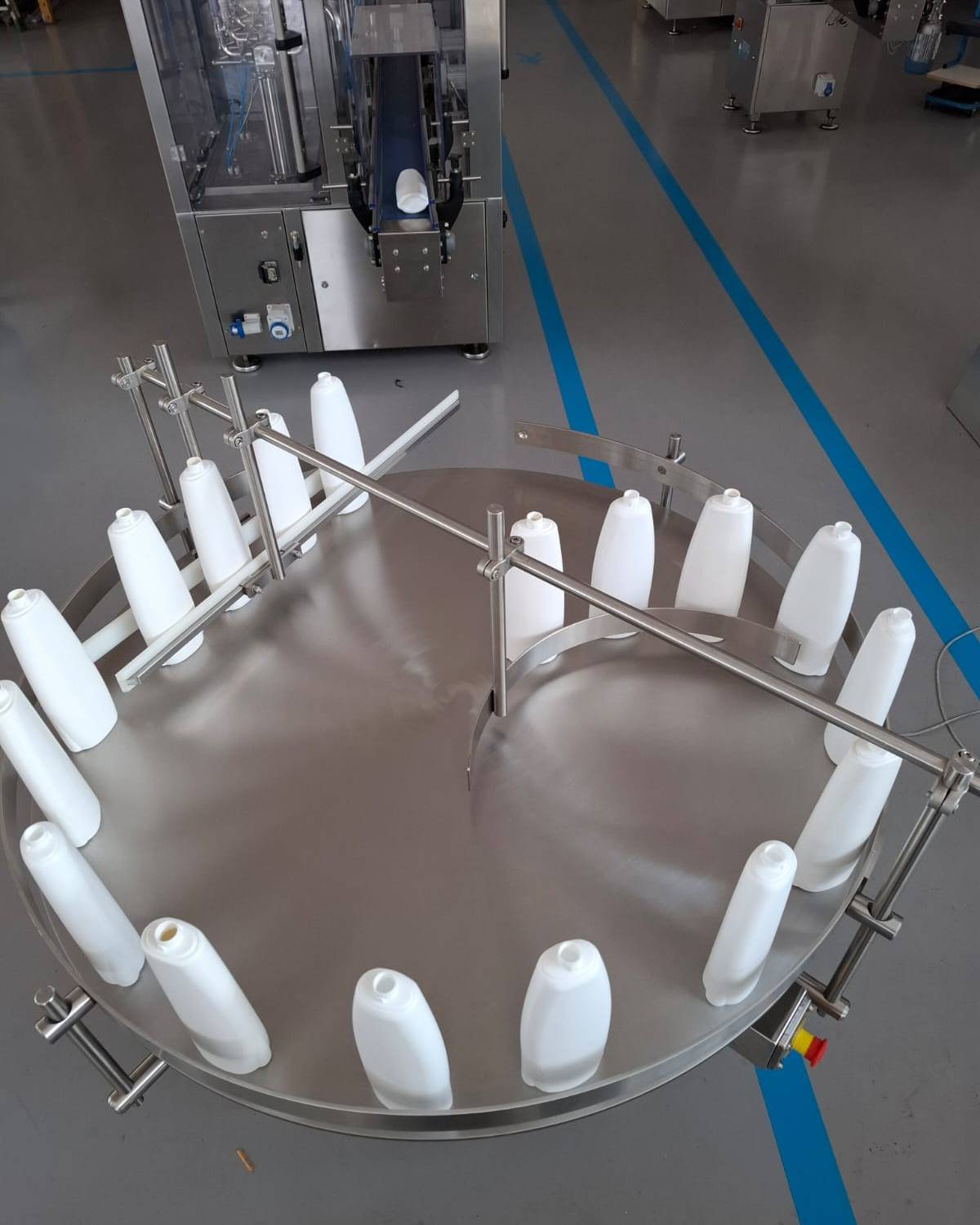

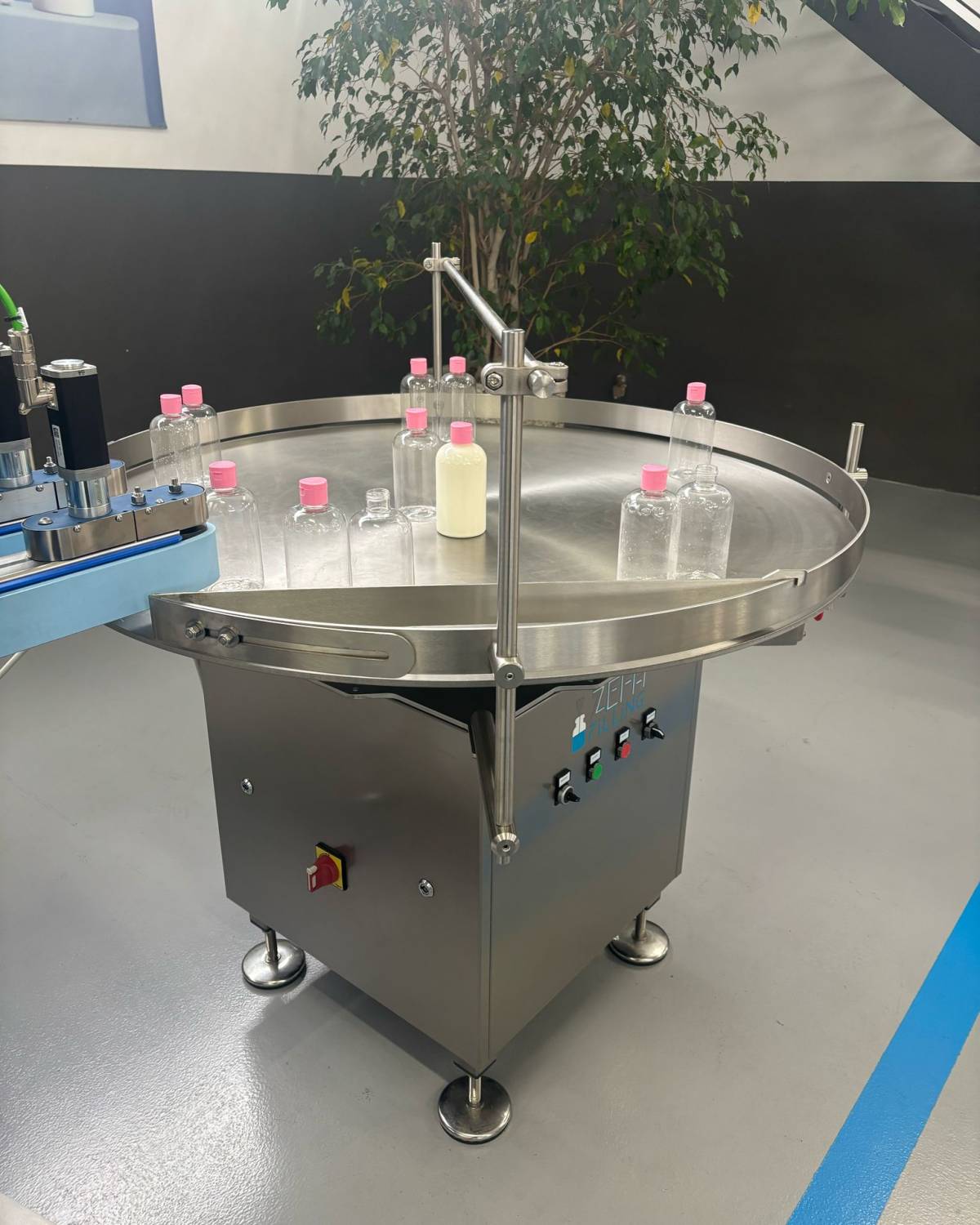

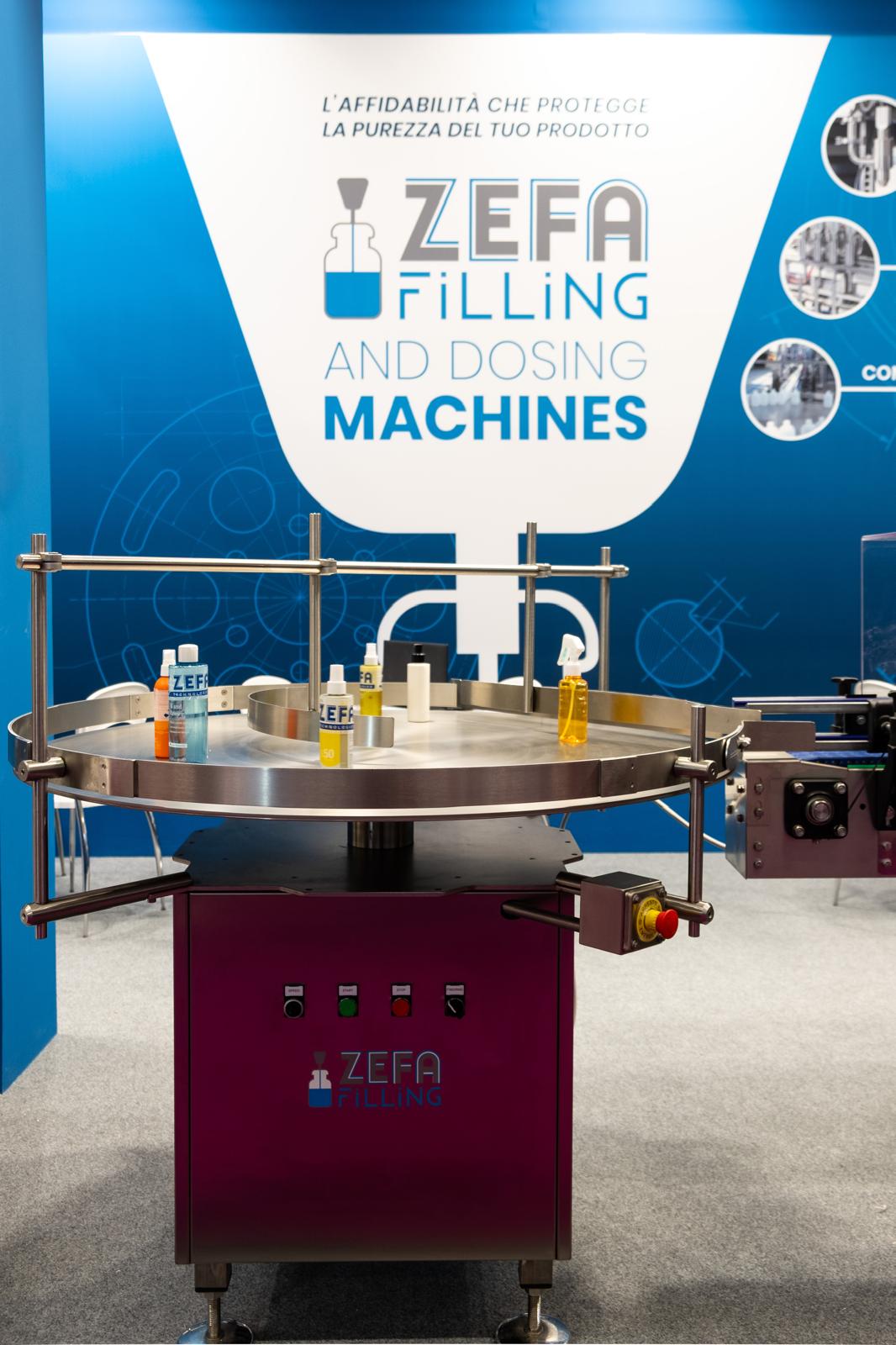

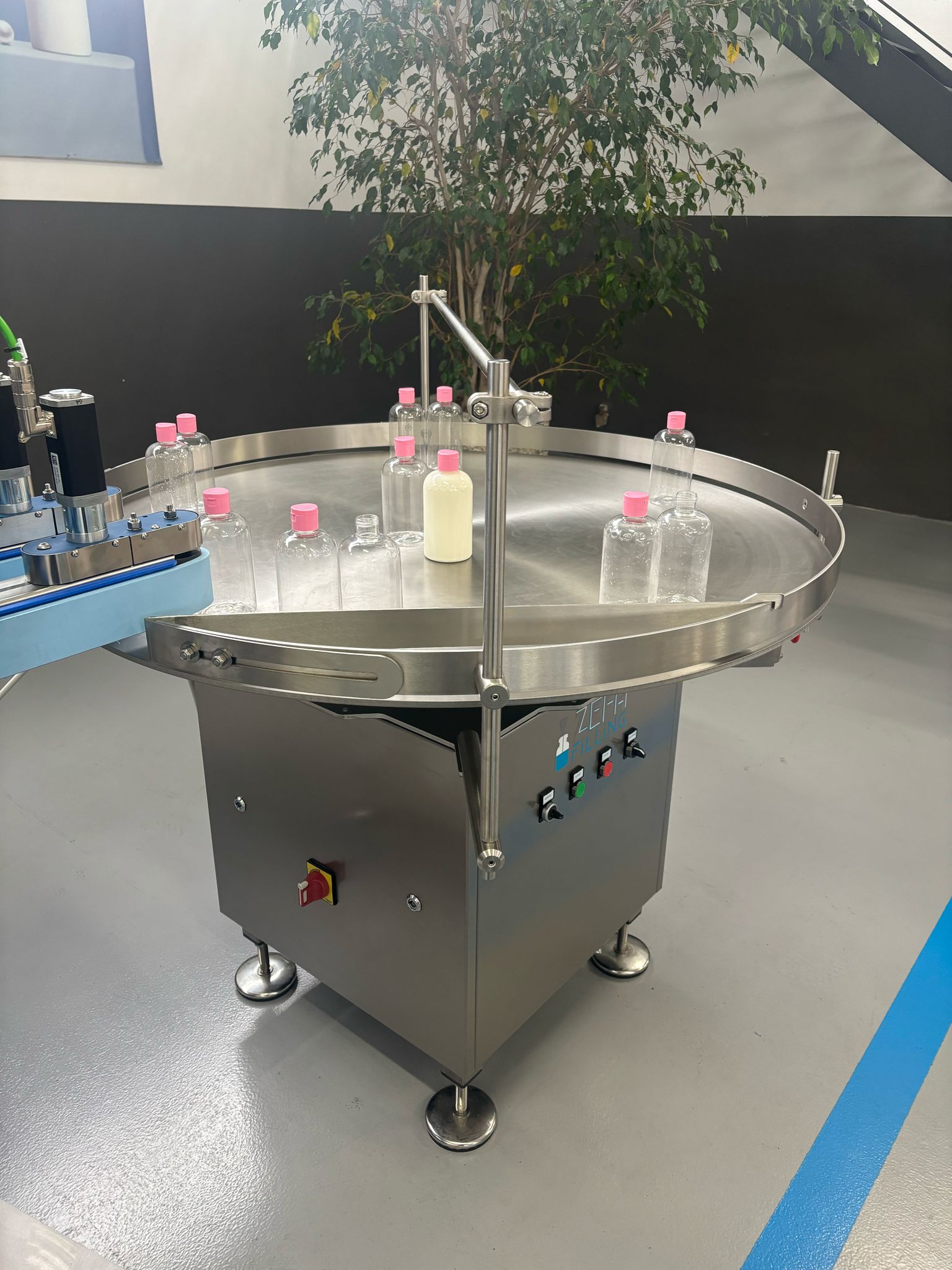

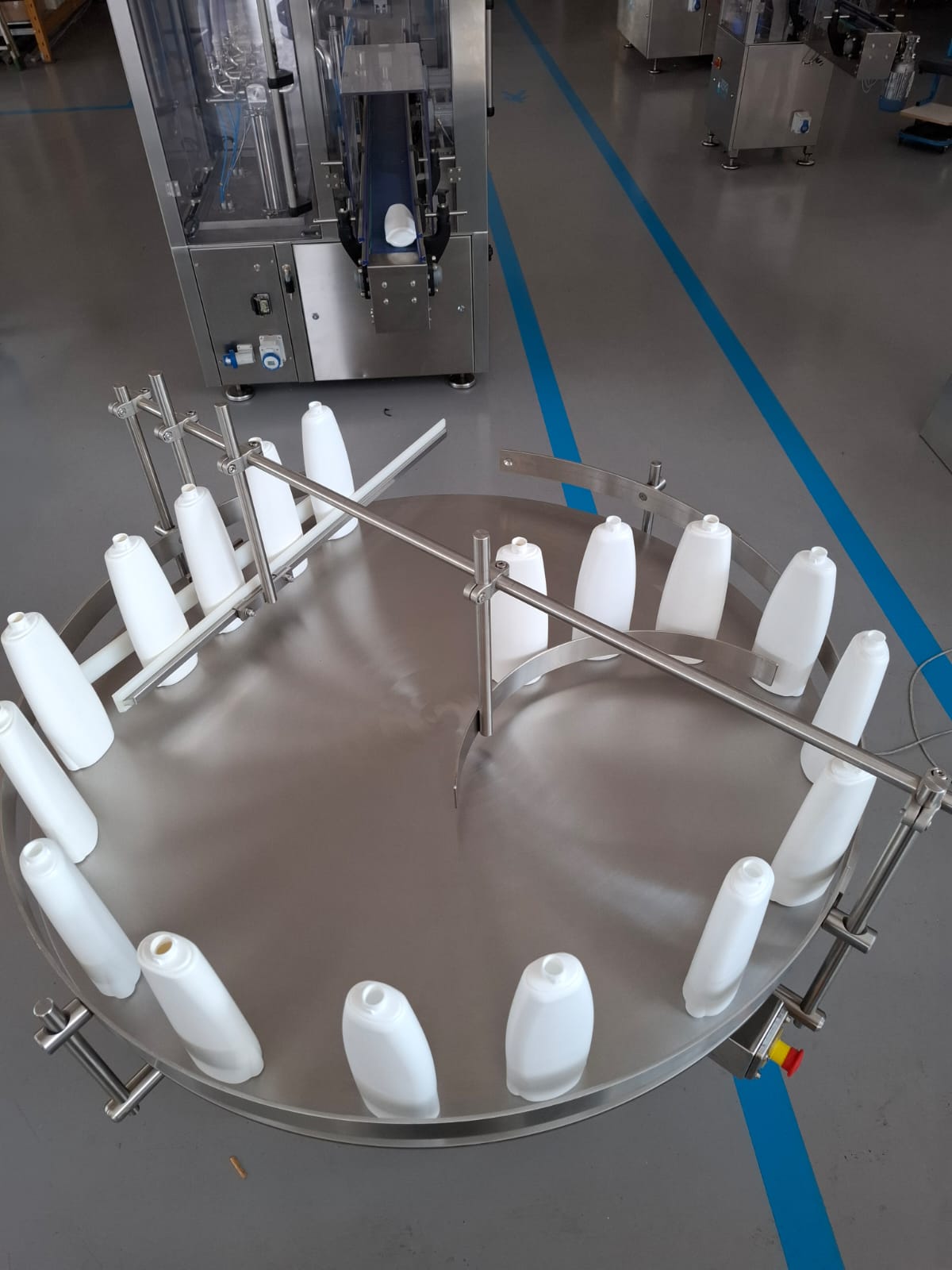

√ Rotary version (RT) – Circular top, ideal for accumulation and feeding of bottles of various shapes and weights.

√ Linear version (LT) – Designed for in-line accumulation of bottles with regular base and smooth conveying

√ Motorized system with reducer and integrated electrical cabinet, equipped with inverter for fine speed adjustment via potentiometer.

√ Equipped with emergency stop button in accessible position and stainless steel anti-vibration feet, ensuring safety and stability during operation.

√ Modular stand-alone structure, designed for integration into new or existing lines, according to ZEFRON engineering philosophy

APPLICATION SECTORS

RANGE

ACCESSORIES

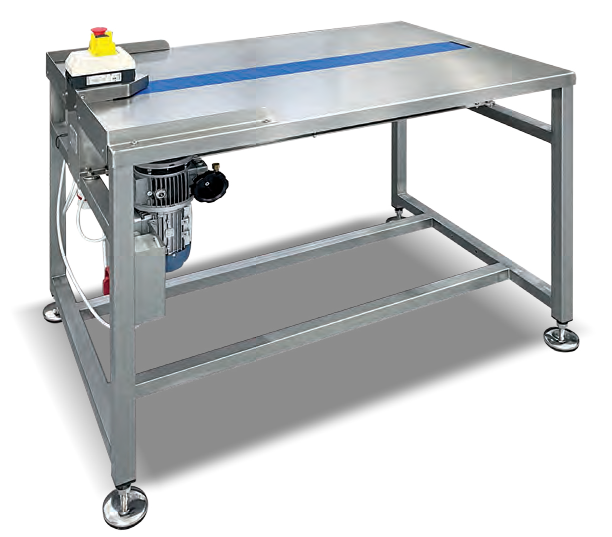

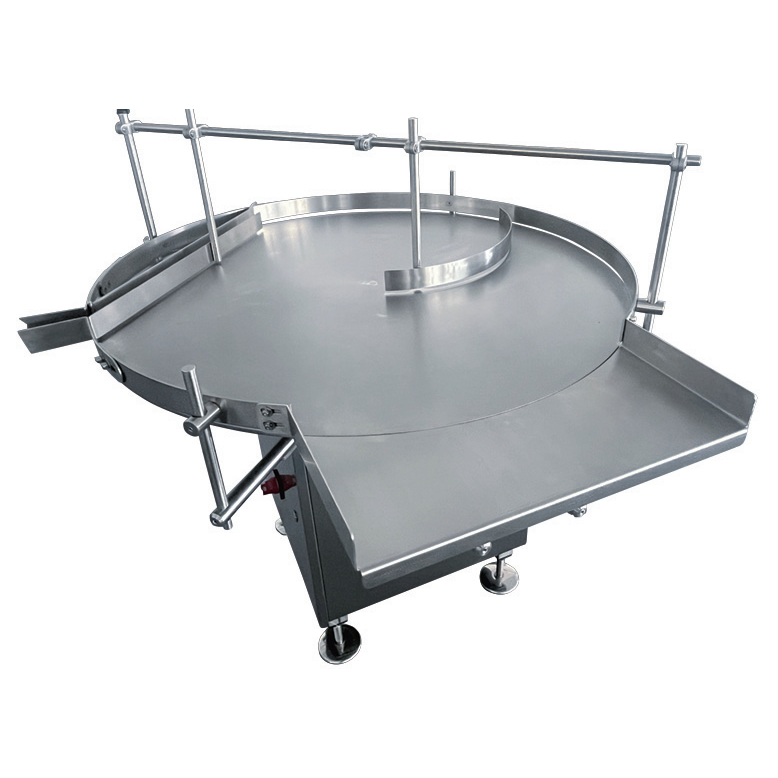

Compact loading table

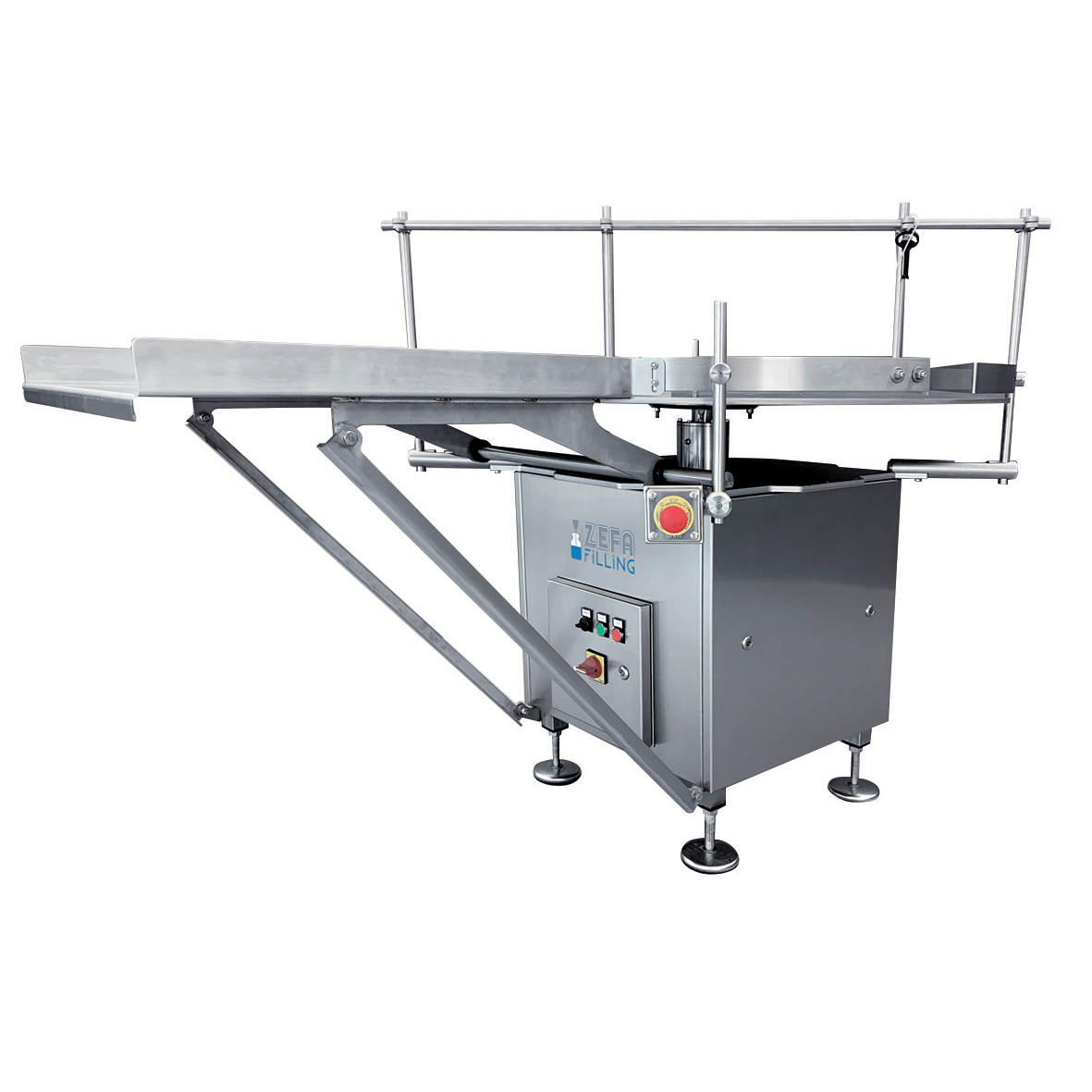

Enlarged loading table

TECHNICAL SPECIFICATIONS

Feature	RT – Rotary Table	LT – Linear Table
Type	Rotary accumulation table	Linear conveying table
Frame	Satin-finished AISI 304 stainless steel	Satin-finished AISI 304 stainless steel
Diameter / Length	Ø 1200 mm – Ø 800 mm	2000 mm – 1200 mm
Adjustable speed	Via inverter and potentiometer	Via inverter and potentiometer
Flow management	Rotation direction reversal (accumulation / discharge)	Unidirectional flow
Emergency stop	Ergonomic, easily accessible position	Ergonomic, easily accessible position
Feet	Stainless steel anti-vibration feet	Stainless steel anti-vibration feet
Maintenance	Easy cleaning – fully accessible structure	Easy cleaning – fully accessible structure
Air consumption	Electric operation only	Electric operation only
Indicative weight	≈ 250 kg	≈ 280 kg
Power supply	400V - 50HZ	400V - 50HZ
Installed power	~0.25 kW	~0.25 kW
