Bench-Top Capper «TPDB01T»
BENCHTOP CAPPING SOLUTION
ZEFRONCAP-LAB L01
Lab System
√ ZEFRONCAP – LAB is the compact benchtop version of the Zefron line: a semi-automatic capper designed for precise and controlled closing of bottles and containers with screw caps.
√ Bottle locking system with pneumatic cylinder.
√ AISI 304 stainless steel structure, with adjustable height column.
√ Modular stand-alone design, easily integrable into existing production lines.
√ Mechanical clutch system with pneumatic torque control, ideal for different types of caps.
√ Specifically designed for laboratories, R&D departments or semi-industrial productions, ZefronCap Lab ensures versatility and fast changeover.
APPLICATION SECTORS

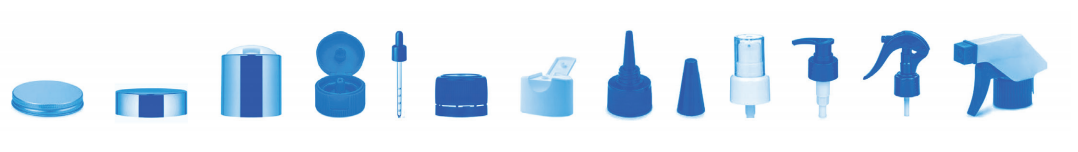

CAPPING RANGE
ACCESSORIES
Kit Madrino
TECHNICAL SPECIFICATIONS
| Feature | Technical Details |
|---|---|
| Type | Semi-automatic benchtop capper – 1 head |
| Structure | Stainless steel AISI 304 base with height-adjustable column |
| Drive system | Pneumatic motor |
| Handled products | Screw caps, snap-on caps, push-in closures |
| Format changeover | Custom format kits for special closures, tailor-made chucks |
| Configuration | Benchtop |
| Power supply | Not required (pneumatic operation only) |
| Maintenance | Easy cleaning, fully inspectable structure |
| Weight | ~20 kg |
| Compressed air | 6-8 bar |
